DESCRIPTION

Basic Info.

Model NO.	TXT-LC-1000/1500/2000
Application	Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
Technical Class	Continuous Wave Laser
Control	Manual
Power Density	Heat Conduct Welding
Laser Classification	Optical Fiber Laser
Type	Optical Fiber Transmission Laser Welding Machine
Laser Power	1000W 1500W 2000W
Laser Source	Raycus
Water Chiller	Hanli
Cooling Type	Water Cooling
Transport Package	Plastic Film and Export Plywood Case
Specification	120*60*125cm
Trademark	TXT Laser
Origin	Wuhan, China

Packaging & Delivery

Package Size120.00cm * 60.00cm * 125.00cm Package Gross Weight250.000kg

Product Description

Laser cleaning is a new technology based on the interaction between laser and material, which can remove the contaminant and attachments on the surface of objects. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, precise cleaning, environmental protection, online availability, and is especially suitable for high-speed online cleaning in designated areas.The laser cleaning machine produced by TXT Laser is a new generation of high-tech surface treatment products, which are easy to install, operate and can be automated. It is simple to operate. Turn on the power, let the equipment on, and the cleaning can be carried out without chemical reagents, medium, dust, and water. It can be fitted to the curved surface, with good cleaning effect. It can remove resin, paint, oil stains, stains, dirt, rust, coating, plating and oxide layer on the surface of objects, and it is widely used in the industry, covering ships, auto repair, rubber molds, high-end machine tools, rails, and environmental protection.

Product Description FEATURES - Unique self-developed spiral cleaning mode. Spiral series, scanning length and width can be set according to customer's demands, effectively avoiding the zebra crossing caused by traditional laser cleaning. - High cleaning efficiency, uniform cleaning surface, no damage to substrate of components. - Professional laser cleaning optical design, high damage threshold of scanning mirrors, high beam transmittance and large focus depth of F-theta lens, can meet long-time working of high-power laser cleaning. - Special custom laser and galvo scanner head, high cleaning speed, to meet various high-level laser cleaning application demands. - Simple structure of hand-held cleaning head, light weight, ergonomic design and easy to operate. - Can match with various types of laser, greatly improve the applicable range of this system. TECHNICAL PARAMETERS

Model	TXT-LC-1000	TXT-LC-1500	TXT-LC-2000
Laser source	Fiber Laser
Laser Power	1000W	1500W	2000W
Fiber cable L	10M	10M	10M
Wavelength	1080nm
Frequency	50-20000 Hz
Clean speed	≤40M²/Hour	≤60 M²/Hour	≤80 M²/Hour
Cooling	Water cooling
Dimension	1200*600*1180 mm	1200*600*1180 mm	1200*680*1250mm
Weight	220Kg	250Kg	290KG
Beam width	10-254mm
Optional	Manual
Temperature	10-40 ºC
Power	< 6KW	< 7KW	< 8KW
Voltage	Single Phase 220V, 50/60HZ

Details

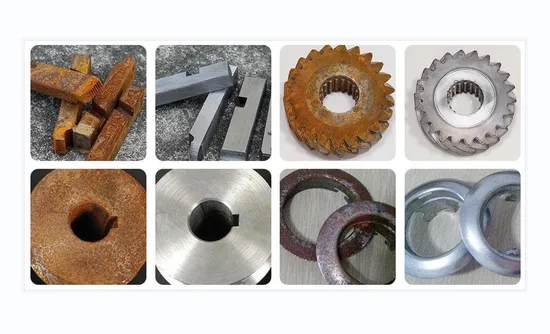

Application 1) Laser Rust Removal: Laser light can easily remove rust, after removal, the surface is restored to a bright metallic color or restoration of original base color. 2) Laser Oil Removal: Metal surface oil cleaning (can remove oxide film at the same time) 3) Laser Paint Removal: removes various paints including auto duco on various substrates and automobiles 4) Stripping coating (galvanized layer, aluminised layer, protective coating, etc.) 5) Removal of aluminium alloy, titanium alloy, copper alloy oxide film 6) Pre-Weld Pre-treatments: After laser cleaning pretreats the aluminium alloy, the welding porosity defects are effectively suppressed 7) Cleaning after welding: Non Contact NDT removal of post-weld oxide film and slag residue 8) Aluminium alloy pulsed lasers remove dirt and oxide film before welding. Applicable Industries Remove the rust, resin, oil contamination, stains, dirt, coating, plating and paint on the surface of different shape metal objects, and the stone caving surface attachments and rubber mold surface residue. Widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical etc .

Packing and Shipping

Packaging

1).Outside package: Standard export plywood case.2). Inner package: Stretchy film and plastic film.3). Machine packing size:1200*600*1250mm ,GW: 250kg

Shipping

We usually ship by DHL, UPS, FedEx, Express, EMS or TNT. It usually takes 3-5 days to arrive. The mode of transportation is also optional.

After service and Warranty

We will give customers 3 years warranty for the whole machine (except for the spare parts), so you don't have to worry about the after-sales. We provide customers with lifetime free online technical support.

Company profile Wuhan Tianxingtong Photoelectricity Technology Co,Ltd, is a specialized laser manufacturer located at Optics Valley of Wuhan East Lake High-Tech district, is a high technology innovation enterprise recognized by the Chinese government.We have focused on the laser field for more than 20 years. After years of development and accumulation, we have officially formed a professional laser equipment manufacturer integrating R&D, production, sales and after-sales. Committed to laser technology and applications, providing users with complete solutions and product technical support for laser application. We supply fiber laser cutting machine, CO2 laser engraving machine, laser marking machine, laser cleaning machine, laser welding machine, 3D laser engraving machine and other machines to more than 70 countries.Because of manufacturer and trading comb, we have flexible operation mechanism and favorable price. And the company takes employees' human rights very seriously, we have perfect human-based management which supply good working atmosphere and helps to offer the best service for you.

Certification
FAQ Q: Are you trading company or manufacturer ? A: We are factory, and has been in the laser field for 20 years. Q: How long is your delivery time? A: Generally it is 3-7 days, it also depends on the machine model and quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge, but customers should pay the carrier cost. Q: What is your terms of payment ? A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment. Q: How to operate the machine ? A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us. Q: How can I get the sample to check you quality ? A: If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided. Q: Does the machine can be customized according to my requirements ? A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied. Q: Can you arrange the shipment for me ? A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
